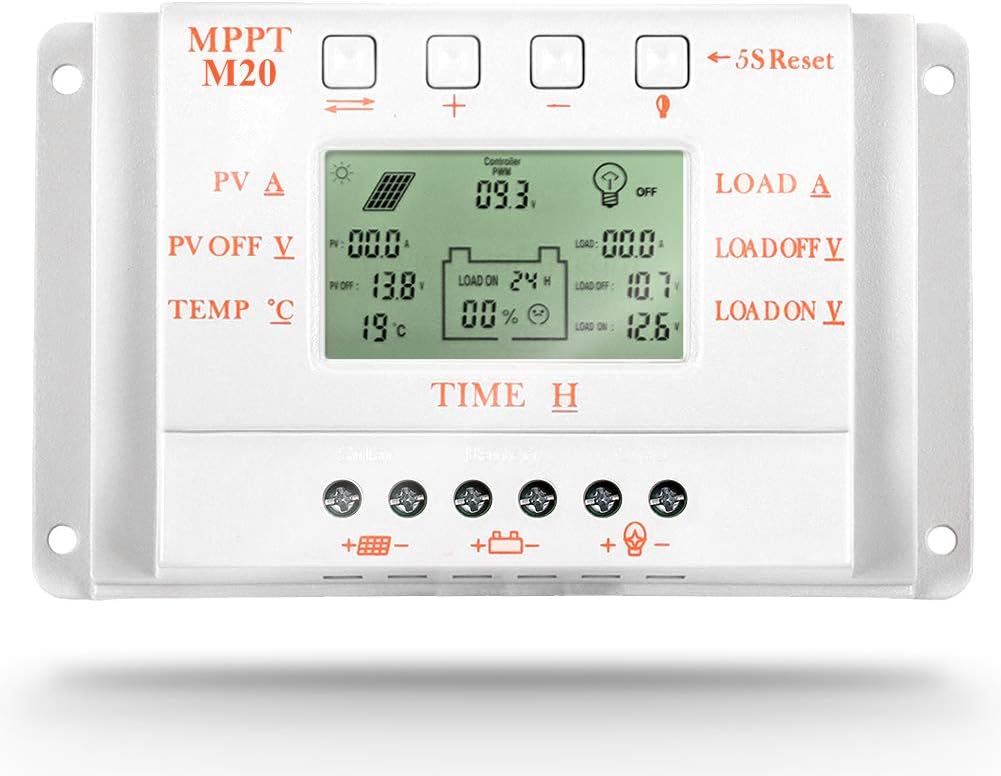

Fuhuihe Solar Panel Controller MPPT 30A LCD Display 12V 24V Solar Regulator with Load Light and Timer Control for Max 50V Input

NOTE1: not true MPPT ,there is no large transformer coil insideNOTE2:Optional USB 5V charging (500mA£¬Not suitable Apple iphone 5 5G)M10A/M20A/M30A solar controller Compared with common solar controllers, it is equipped with temperature compensation function, can make the work efficiency increased by 30%, and can observably prolong the life of the storage battery.it is add the comprehensive protection function makes the whole solar system operate efficiently and safely.30A:.30A Solar Panel Charge Controller Regulator Solar panel 380W/12V 760W/24VCompatible with 760W(24v) solar panel with dark activated function, Max current is 30A TimerIntigrated (Lighting function)Specifics1. Battery (under voltage) recovery voltage:12.6V(12V )2. Charge mode:PWM MODE3. Operating Temperature:-10°C~60°C4. Storage Temperature:-30°C~70°C5. Voltage:12V/24V6. Maximum open circuit voltage of the sola:18V-24V(12V system)36V-48V(24V system)7. Battery float voltage:13.8V(12V system)/27.6V(24V system)8. Solar panels maximum open circuit voltag:≤48V9. Battery (under voltage) protection:10.6V(12V system)/21.2V(24V system) Package contents:1x Solar Controller1x English User Manual1x Temp. Sensor

• Not True MPPT,there is no large transformer coil inside,Compatible MPPT + PWM charging mode
• 30A Solar Charge Controller Regulator 380W/12V 760W/24V Compatible with 760W(24v) solar panel, Max current is 30A Timer
• The system automatically recognizes the voltage, rated working voltage, 12V / 24V automatic switch

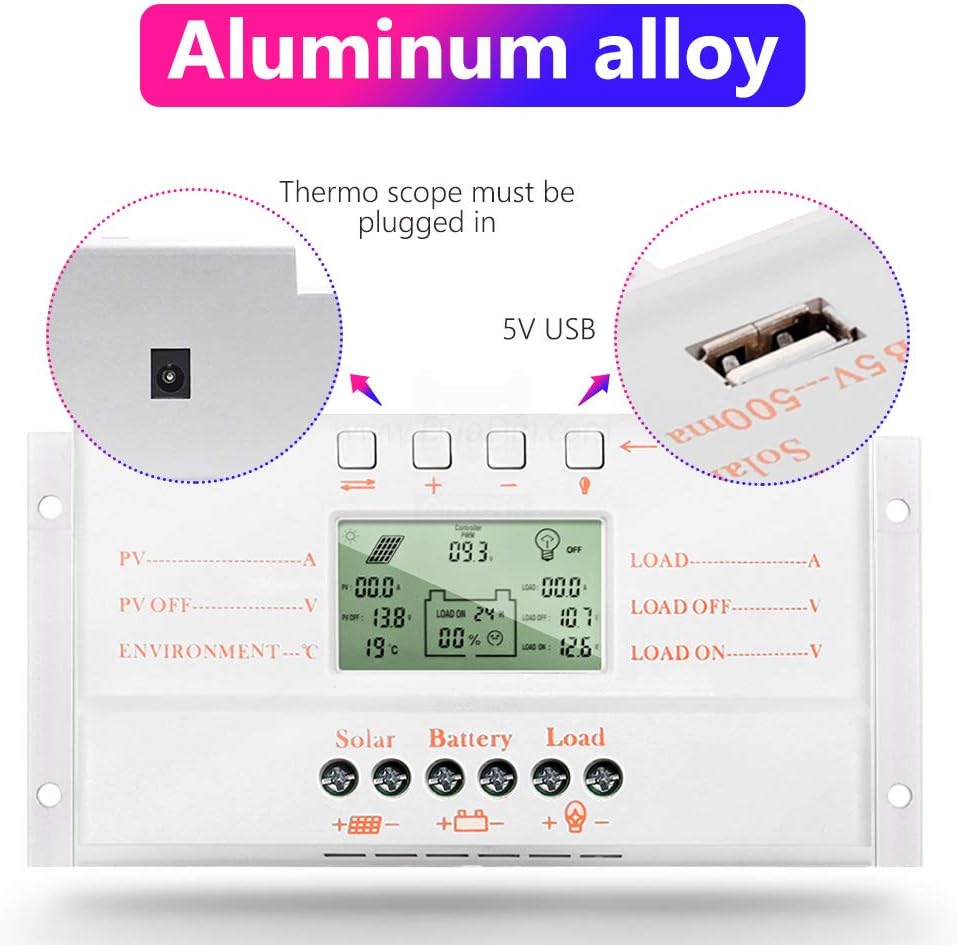

• Solar Charge Regulator: Simple Visible and Settable LCD display for data showing and system status monitoring,Various Load Control Mode Available and efficient heat Dissipating
• Solar charge controller is add the comprehensive protection function makes the whole solar system operate efficiently and safely.and can observably prolong the life of the storage battery.
